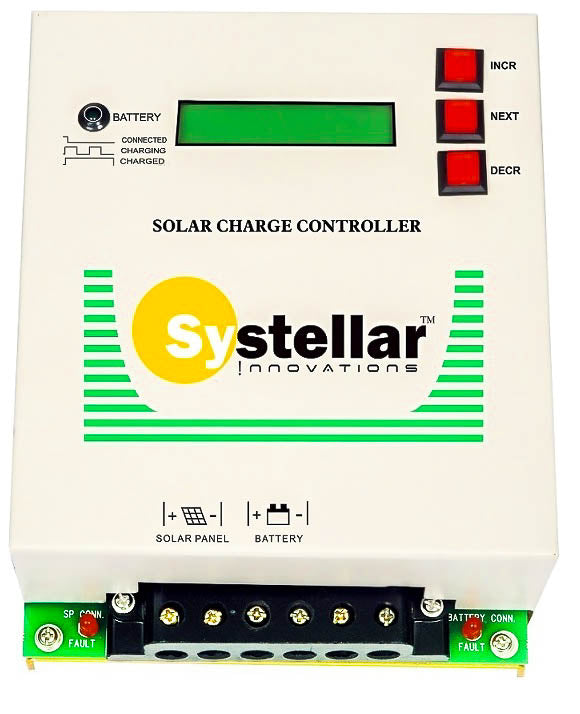

Systellar CC-PWM-HV High Voltage Charge Controller 72V to 240V 40A for Lead Acid battery
Rs. 8,799.00
The CC-PWM-HV series is the perfect solution for charging Lead Acid batteries in existing inverters installed at petrol pumps, institutes, offices, and schools. High voltage solar charge controllers are designed to utilize solar power effectively. This range of controllers has helped hundreds of customers across India reduce electricity bills and embrace renewable energy over the past decade. Ideal for remote areas, it ensures reliability and efficiency in solar energy management.
| Technical Specification | |
| Charge controller type | Microprocessor controlled high efficiency PWM design |
| Display Type | 16 x 2 LCD digital display with backlight |
| Battery Voltage | 72V / 96V / 120V / 144V / 180V / 240V (Factory set) |
| Maximum solar panel voltage | 410 V (To be matched with battery bank voltage) |
| Charging method | 3 stage battery charging – Boost/Absorption/Trickle mode |
| Max Charging Current (at 25 C ) | 40A |
| DC Load functionality | No |
| Equalizing charging mode | Yes |
| Temp. compensated battery charging | Yes (Built-in ambient temperature sensor & external battery temp. sensor optional) |
| Conversion Efficiency (%) | Up to 98% |
| Parameters displayed on LCD | PV power, Cumulative PV KWHr, Battery voltage, Battery current, Battery charging mode, Night mode, Time since dusk, Ambient/Battery temperature |
|
Programmable parameters (Using 3 buttons on front panel) (Voltages shown for 12V lead acid battery. Multiply by 5, 6, 8, 10, 15, 16 or 20 to get actual battery bank voltage) |
Battery end-of-charge voltage (Range: 13.6V – 14.5V) |
| Battery trickle charge voltage (Range: 13.2V – 14V) | |
| Battery equalizing charge voltage (Range: 14V – 14.8V) | |
| Maximum battery charging current (Range: 5A to 40A in steps of 5A) | |
| Protections | PV and Battery reverse polarity protection, Battery reverse current protection at night, Battery overcharge and deep discharge protection, Battery disconnect protection, Overload protection |
| Optional Accessories | Battery temperature sensor with 2 meters cable |
| Power saver box for 4 KW inverter load or 15 KW inverter load (Mains supply to inverter is cut-off when the battery voltage is above a set voltage. This ensures saving in electricity bills) | |
| Operating Temperature Range | 0 to 45 °C |
| Usage | For indoor use only |
| Unit Weight | 1.4 kg |
| Dimensions (H x W x D) | 190mm x 160mm x 80mm |
| Mounting | Vertical wall mount – indoor only |
| Manufacturing Warranty | One year |
