MPPT-HV-300 | 60A High Voltage MPPT Solar Charge Controller 48V–120V | Voc 265V | Systellar
Rs. 19,999.00
Power Big Off-Grid Systems with India’s 60A High-Voltage MPPT Solar Charge Controller
Buy the Systellar CC-MPPT-HV-300 — a proudly Made-in-India high voltage MPPT solar charge controller engineered for serious off-grid, hybrid and industrial systems running 48V to 120V battery banks. With 60A of charging current, solar arrays up to 9,600 Wp, and full support for Lithium, LiFePO4, Lead Acid and Ni-Cd, it extracts every available watt from your panels through dynamic Maximum Power Point Tracking and delivers it safely to your bank. A built-in power-saver relay even shifts your inverter from grid to solar automatically — cutting your electricity bill with no manual switching. Order online with free shipping, GST invoice and pan-India delivery.
⚡ Ready to buy? Select your battery-bank voltage (48V / 60V / 72V / 96V / 120V) above and click Add to Cart. Need 5+ units or a project quote? Call +91 95680 04455.
Why You Will Value the CC-MPPT-HV-300
- True high-voltage headroom: built for 48V–120V banks and solar strings up to 265V open-circuit — where ordinary 12V–48V controllers simply cannot operate.
- Maximum solar harvest: dynamic MPPT plus a triple-interleaved buck design delivers up to 96% conversion efficiency with minimum power loss and low charger heating — up to 25–30% more energy than a PWM controller.
- One controller for every battery: field-programmable profiles for Lithium, LiFePO4, Lead Acid (Tubular, SMF, Gel, Flooded) and Ni-Cd — protects your current bank and your next one.
- Lower your power bill automatically: the built-in power-saver relay prioritises solar during the day and reconnects the grid only when needed.
- Set up in the field, no laptop: a 128×64 backlit LCD shows 8 rows of live data, and a 5-key panel programs every charging threshold on the spot.
- Atmanirbhar engineering: designed, built and supported in India for local grid, climate and dust conditions — with specialist after-sales support.
Key Specifications at a Glance
| Max Charging Current | 60A (field-programmable 5A–60A) |
| Battery Bank Voltage | 48V / 60V / 72V / 96V / 120V (field programmable) |
| Max Solar Input (Voc) | Up to 265V open-circuit (absolute max 300V) |
| Max Solar Array | Up to 9,600 Wp (at 120V bank) |
| Battery Types | Lithium, LiFePO4, Lead Acid (SMF/FLA/Tubular/Gel), Ni-Cd |
| Technology | Triple Interleaved Non-Synchronous Buck Converter MPPT |
| Conversion Efficiency | Up to 96% |
| Power Saver Relay | Built-in, 250V AC / 20A (handles ~4 kW load) |
| Made In | India — two-year offsite warranty |
Best MPPT Charge Controller for Lithium, LiFePO4 & Lead-Acid Banks
The move to lithium and LiFePO4 storage demands a precise, programmable charging profile that budget controllers cannot deliver. The CC-MPPT-HV-300 is a full-featured MPPT solar charge controller for lithium battery and LiFePO4 banks, with a dedicated deep-discharge recovery stage that safely revives deeply drained lithium packs before normal charging begins. You can set end-of-charge, absorption, trickle, re-bulk, low-cut and (for lead-acid) equalize voltages directly from the front panel — matching your exact bank specification.
Who Should Buy This Controller?
- Large off-grid solar plants — homes, farms and remote sites on 48V–120V banks with arrays up to 9,600 Wp.
- Commercial & industrial solar — high-voltage banks with optional RS-485 / MODBUS for remote monitoring and SCADA.
- Inverter-to-solar conversion — add solar to an existing high-voltage inverter using the built-in power-saver relay.
- Telecom, security & backup power — reliable 24/7 charging for large backup battery banks.
- System integrators & EPCs — a dependable, field-programmable controller with bulk pricing and GST invoicing.
5-Stage Charging for Maximum Battery Life
A precise 5-stage charging algorithm charges fast while protecting your bank: Deep Discharge (safe lithium recovery at limited current) → Bulk (maximum current) → Absorption (voltage held, current tapered) → Trickle (maintenance without overcharge) → Equalization (periodic controlled overcharge for lead-acid, automatic or manual). Every threshold is user-programmable for the longest possible battery service life.
Maximum Solar Panel Capacity by Battery Bank
| Nominal Battery Bank | Max Solar Panel Capacity |
|---|---|
| 48V | 3,840 Wp |
| 60V | 4,800 Wp |
| 72V | 5,760 Wp |
| 96V | 7,680 Wp |
| 120V | 9,600 Wp |
Panel string guidance: keep 48V/60V banks below 212V Voc (about 4 × 550Wp panels in series); 72V–120V banks up to 265V Voc (about 5 panels in series). Never exceed the 300V absolute maximum.
Safety & Protection — Built to Last
- Battery over-voltage and deep-discharge protection
- PV input over-voltage protection — charging stops if panel voltage is too high
- Reverse-polarity safe — display will not power on if battery polarity is wrong
- Spark-free “soft” battery connection
- Built-in heat-sink temperature sensor — stops charging on overheat
- Colour LED fault indicators with coded blink patterns for fast field diagnosis
Full Technical Specifications
| Model | CC-MPPT-HV-300 |
| Controller Type | Microprocessor-controlled high-efficiency MPPT |
| Technology | Triple Interleaved Non-Synchronous Buck Converter |
| Conversion Efficiency | Up to 96% |
| Max Charging Current | 60A (field programmable, 5A–60A) |
| Nominal Battery Bank Voltage | 48V to 120V (field programmable) |
| End-of-Charge Voltage | Max 150V (field programmable) |
| Solar Panel Voc Range | 106V to 265V (2–5 panels in series); absolute max 300V |
| Max Solar Array | Up to 9,600 Wp (at 120V bank) |
| Battery Chemistries | Lead Acid (SMF/FLA/Tubular/Gel), Li-ion, LiFePO4, Ni-Cd |
| Charging Method | 5-stage: Deep Discharge, Bulk, Absorption, Trickle, Equalization |
| Equalizing Charge | Yes (lead-acid) — automatic interval or manual |
| Temp-Compensated Charging | Yes (optional external battery temperature sensor) |

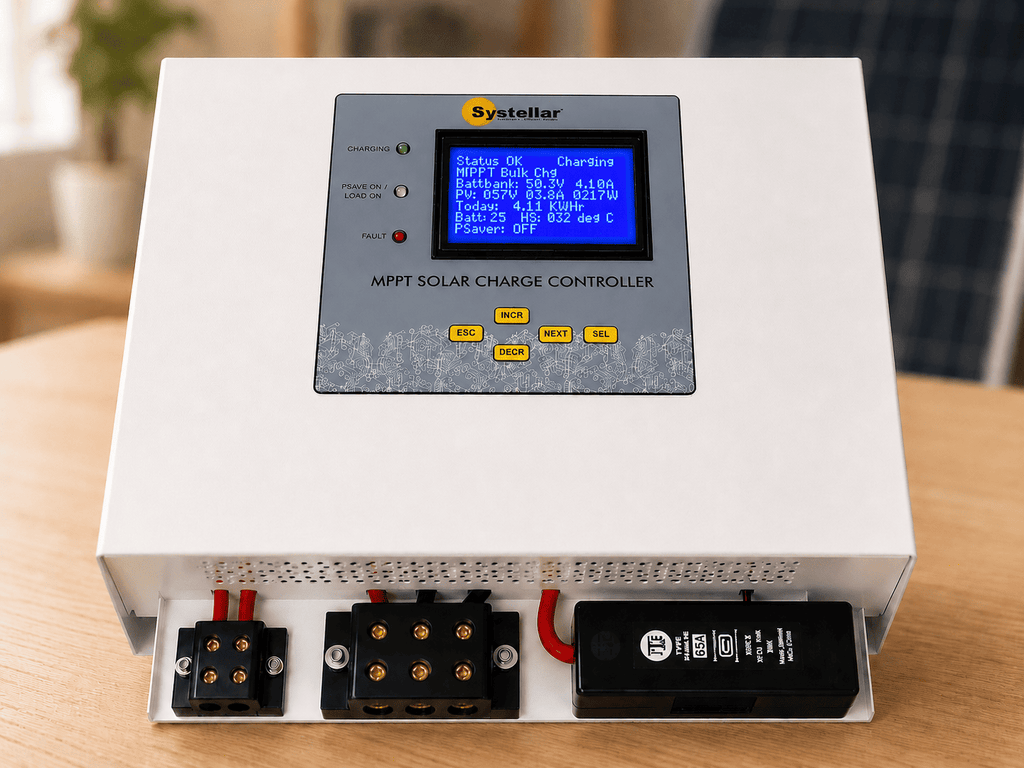

| Display | 128×64 pixel backlit graphic LCD (8 rows × ~22 characters) |
| Keyboard | 5 keys (INCR, DECR, NEXT, ESC, SEL) |
| Microcontroller | ARM-based 32-bit |
| Power Saver Relay | Built-in, 250V AC / 20A (Common & N/C contacts) |
| Idle Current (from battery) | Max 60 mA |
| Protections | PV & battery reverse polarity, battery over-voltage & deep discharge, PV over-voltage, heat-sink overheat |
| LED Indicators | Green (charging), Blue (power saver), Red (faults) |

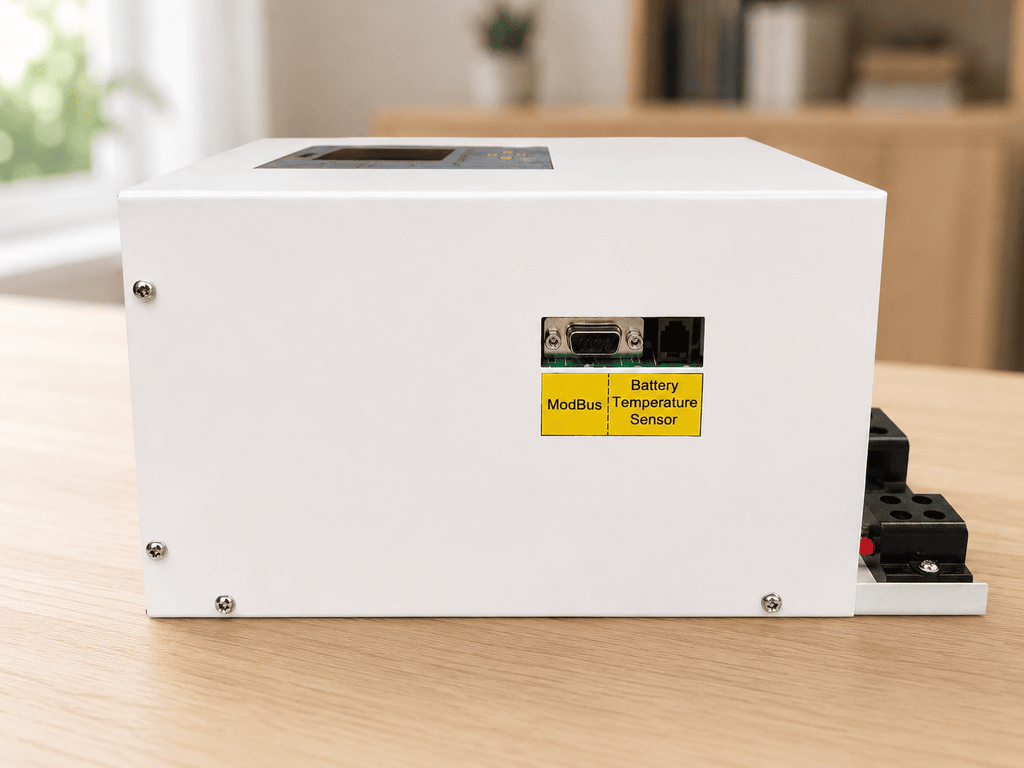

| Optional Accessories | Battery temperature sensor (2 m cable); RS-485 / MODBUS RTU adapter card |
| Usage | Indoor wall mount, near the battery bank |
| Dimensions (L × W × H) | 14 cm × 29 cm × 28 cm |
| Weight | 5.5 kg |
| Warranty | 2 years (offsite) |
Buy Online — Shipping, GST & Bulk Orders
Buy the CC-MPPT-HV-300 online direct from Systellar with free shipping and pan-India delivery, backed by a GST invoice and specialist Indian engineering support. Wholesale and dealer pricing is available for solar installers, system integrators, EPCs, NGOs and government project suppliers on bulk orders (5+ units). For a project quote, current price, or technical help choosing the right model:
📞 Call / WhatsApp: +91 95680 04455
✉ Email: info@systellar.in
Frequently Asked Questions
Which battery bank voltages does it support?
48V to 120V nominal (48V, 60V, 72V, 96V, 120V), fully field-programmable for lead-acid, lithium, LiFePO4 and Ni-Cd.
What is the largest solar array I can connect?
Up to 9,600 Wp on a 120V bank, with solar input up to 265V open-circuit (300V absolute maximum).
Is it good for LiFePO4 and lithium batteries?
Yes — it is a full-featured MPPT charge controller for lithium and LiFePO4, with programmable charge profiles and a deep-discharge recovery stage.
Do you offer dealer / bulk pricing?
Yes, for installers and system integrators with GST invoicing. Call +91 95680 04455 for a quote.
How is delivery handled?
Free shipping across India with a GST invoice. Dispatch and tracking details are shared after your order.
Systellar Innovations is committed to a cleaner, self-reliant energy future. Your CC-MPPT-HV-300 is backed by a two-year offsite warranty and expert Indian engineering support.
