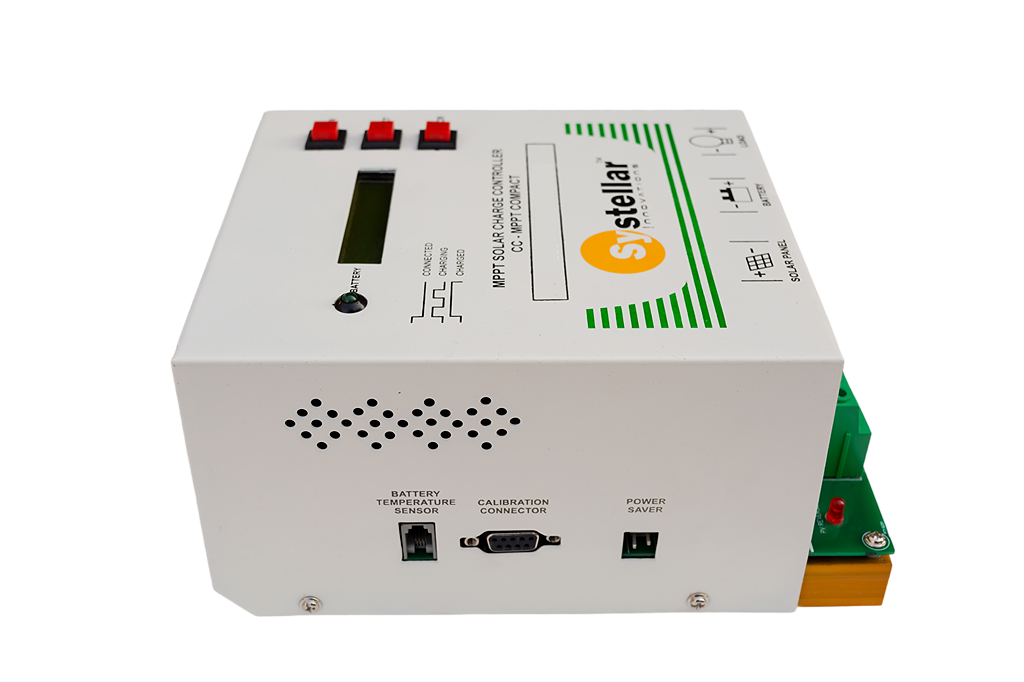

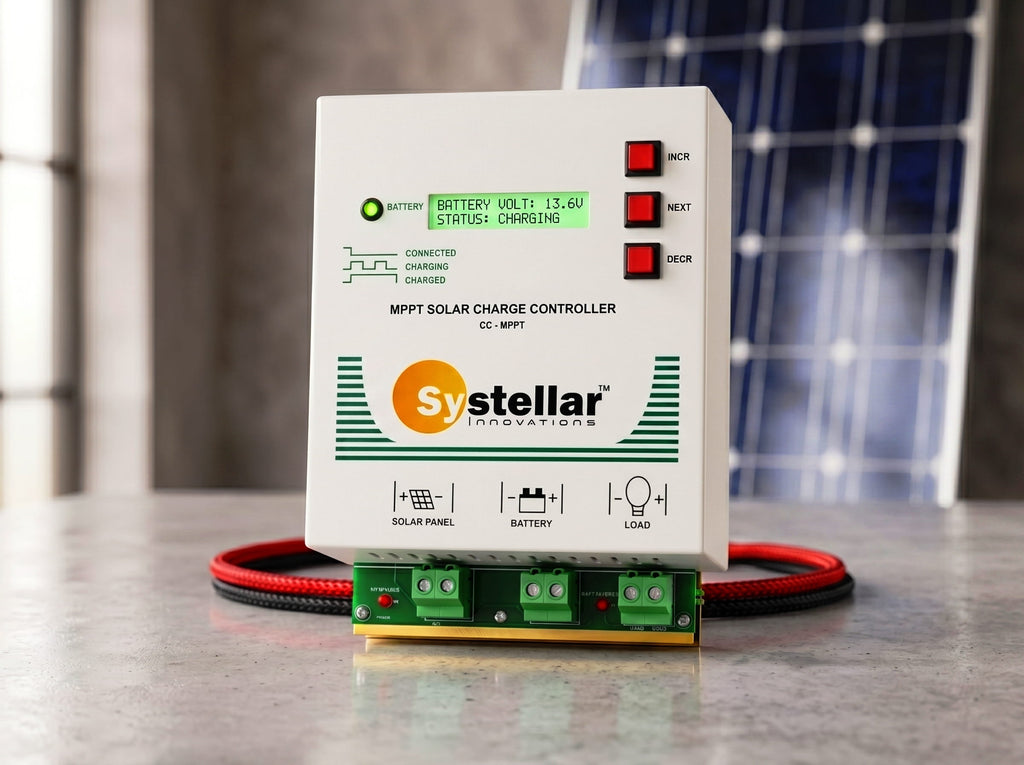

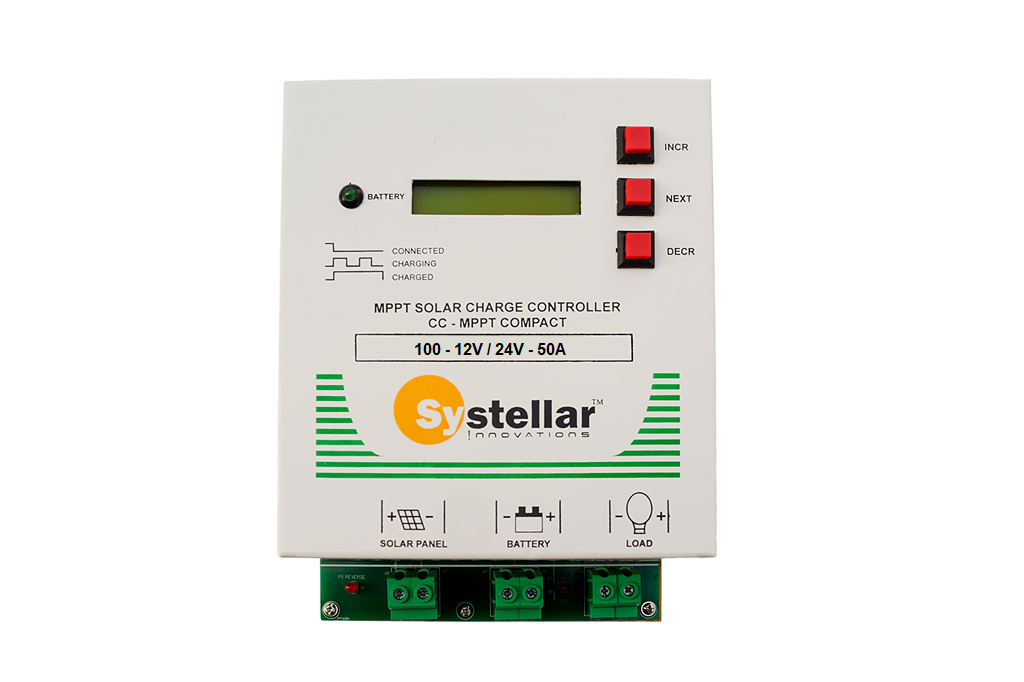

MPPT 12V/24V Solar Charge Controller Voc 85V - Systellar CC-MPPT-Compact-100
Rs. 5,999.00
Sale price
Rs. 5,999.00
Regular price
Not sure which model you need? Compare all four MPPT controllers side by side — battery bank voltage, array size, etc.
Compare models →
Compare models →
Achieve Energy Independence with Advanced MPPT Technology
The Systellar CC-MPPT-Compact-100 series delivers a solution-oriented approach to solar power management. Engineered for high-efficiency energy conversion, this solar charge controller ensures your battery bank receives optimal power even in fluctuating weather conditions. Proudly Made in India, this series is designed to withstand local electrical environments while helping you reduce electricity costs through superior engineering precision.
Why Choose the Compact-100 Series:
- Maximum Energy Harvest: Advanced tracking algorithms achieve up to 98.8% efficiency, ensuring every ray of sunlight contributes to your power needs.
- Universal Battery Compatibility: Factory-set variants support Lead Acid, LiFePO4, Li-ion, and NiCd batteries for seamless integration into any off-grid setup.
- Intelligent Charging: A 5-stage charging process (Deep discharge, Boost, Absorption, Trickle, and Equalize) extends battery life and improves system reliability.
- Durability: Designed for Indian conditions with an indoor IP21 housing and a robust dual-channel interleaved synchronous buck-converter.
Technical Specifications:
- Technology: Dual channel interleaved synchronous buck-converter MPPT
- Battery Support: Lead-Acid, LiFePO4, Li-ion, and Nickel-Cadmium (Factory set variants)
- Controller Type: Maximum Power Point Tracking (MPPT)
- Battery Voltage: 12V / 24V (Auto-select)
- Max Charging Current: 25A or 50A (separate models)
- Max Solar Panel Voc: 85V for all battery voltages
- Efficiency: 98.8% MPP tracking | Conversion efficiency 97.3% (12V) / 97.8% (24V)
- DC Load Terminal: Integrated terminal supporting up to 20A with Dusk-to-Dawn control
- Display: 16 x 2 Backlit LCD showing PV Voltage, Current, Power, and Cumulative KWHr
- Protections: Reverse polarity, night-time reverse current, overcharge, and deep discharge
- Connection Terminal size: Wires upto 10 sq. mm. can be connected to all the 3 terminals (Sufficient upto 55A current)
- Dimensions: 190mm x 160mm x 80mm | Weight: 1.4kg for 25A, 2.5kg for 50A
- Warranty: 2 year
Installation & Usage:
Designed for vertical wall mounting in indoor environments. Utilize the front-panel keys to monitor PV voltage, battery current, and cumulative KWHr. For enhanced performance, pair with an optional battery temperature sensor or a power saver box (Sold separately) to automate mains cut-off when solar energy is sufficient.
At Systellar Innovations, we are committed to Atmanirbharta through sustainable engineering. Our two-year manufacturing warranty reflects our identity as a reliable specialist in India's renewable energy future.
| Technical Specifications | |
| Charge controller type | Maximum Power Point Tracking (MPPT) charging technology |
| MPPT technology | Dual channel interleaved synchronous buck-converter |
| Charging stages | 5 charging stages: Deep discharge / Boost / Absorption / Trickle / Equalize |
| Temp. compensated battery charging | Yes, with an optional battery temperature sensor (Details below) |
| Battery Voltage | 12 / 24V (auto-select). (For cell types Li-ion, LiFePO4, NiCd it is possible to choose number of cells) |
| Battery type (factory set) | Variants available for: |
| - Lead Acid battery | |
| - Lithium Ferro Phosphate battery (LiFepO4) | |
| - Lithium-ion | |
| - Nickel Cadmium battery | |
| Maximum Charging Current | 25A or 50A (Wires upto 10 sq. mm. can be connected to all the 3 terminals — sufficient upto 55A current) |
| Maximum Solar panel V_oc | 85V for all battery voltages |
| Maximum solar panel capacity 25A models | 375Wp for 12V battery / 750Wp for 24V battery |
| Maximum solar panel capacity 50A models | 750 Wp for 12V battery / 1600 Wp for 24V battery |
| MPP tracking Efficiency (%) | Up to 98.8% |
| Conversion efficiency | 97.3% for 12V, 97.8% for 24V |
| Maximum DC Load current (@ battery voltage) | 20A |
| Programmable parameters (Using 3 keys on the front panel). Parameter permissible range depends on the battery type | For lead-acid batteries: Number of batteries (1 – 2) |
| For other cell types: Number of cells in battery pack | |
| Battery end-of-charge voltage | |
| Absorption charge time (minutes) | |
| Battery trickle charge voltage | |
| Battery low cutoff enter voltage (Low cutoff exit voltage is equal to the nominal battery voltage) | |
| Battery equalizing charge voltage | |
| Power saver turn off battery voltage | |
| Maximum battery charging current | |
| DC Load control code (0: Always ON, 1: Dusk to Dawn, 2 – 14: Hours ON after sunset) | |
| Power saver type 0: Normal; 1: Extended | |
| Display Type | 16 x 2 LCD digital display with backlight |
| Displayed parameters on LCD | PV voltage, PV current, Battery voltage, Battery current, Battery charging mode, PV power, Cumulative PV KWHr, Load On/Off status, Load current, Battery temperature, Heatsink temperature |
| Protections | PV and Battery reverse polarity protection, Battery reverse current protection at night, Battery overcharge and deep discharge protection, Battery disconnect protection, Overload protection |
| Optional Accessories (can be purchased separately) | 1. Battery temperature sensor with 2 meters cable |
| 2. Power saver box: Mains supply to inverter is cut-off when sufficient solar energy is available. This ensures saving in electricity bills. | |
| Usage | Indoor IP21 housing |
| Operating Temperature Range | 0°C to 45°C |
| Unit Weight | 1.4 Kg for 25A / 2.5 Kg for 50A |
| Dimensions (H x W x D) | 190mm x 160mm x 80mm |
| Mounting | Vertical wall mount |
| Manufacturing Warranty | Two year |
