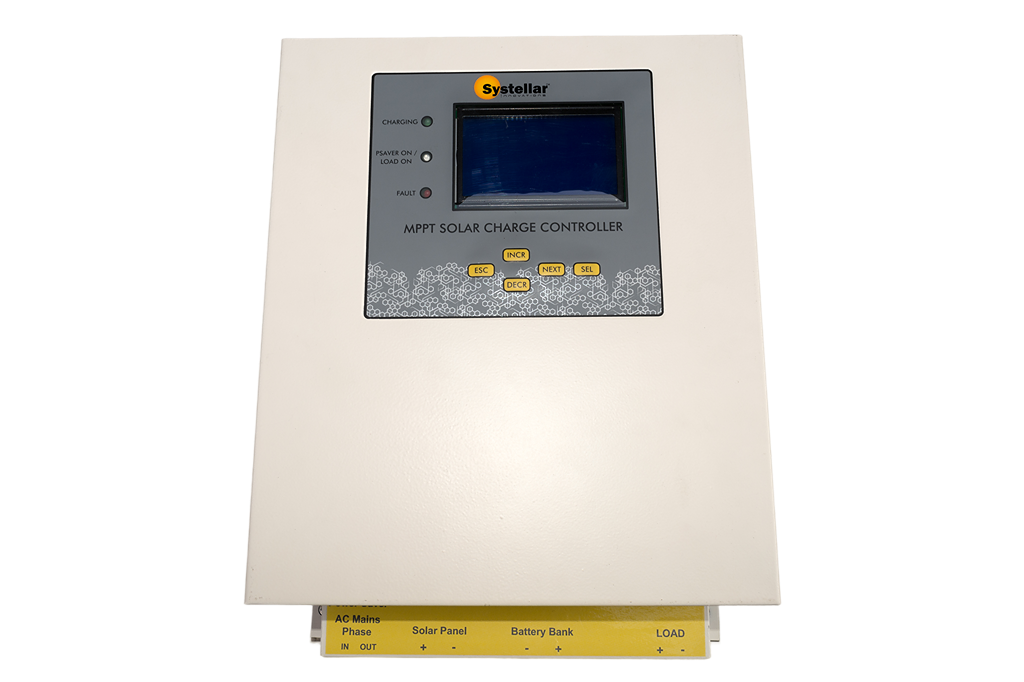

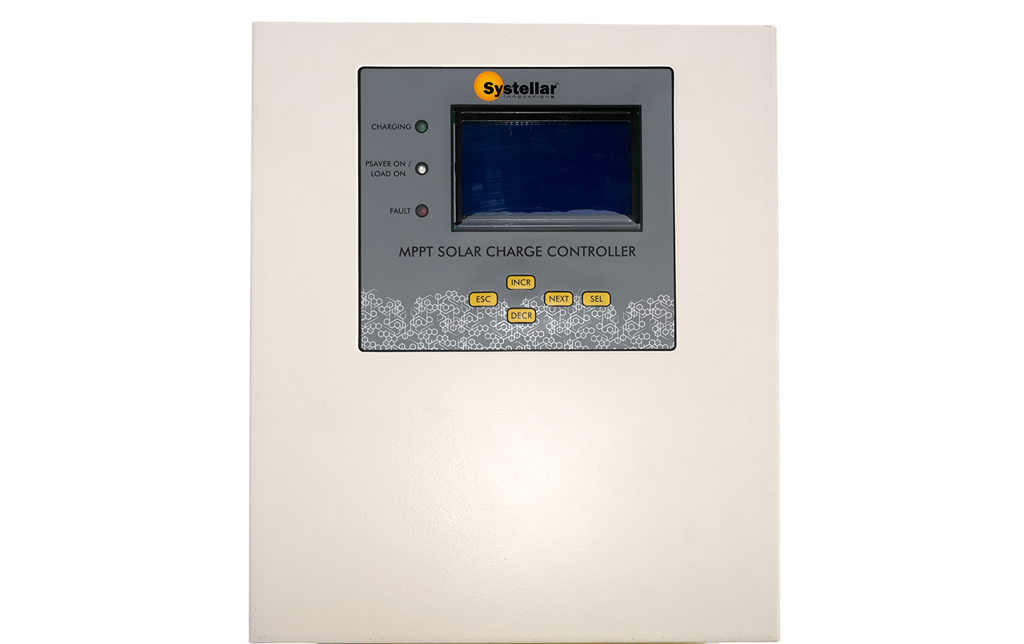

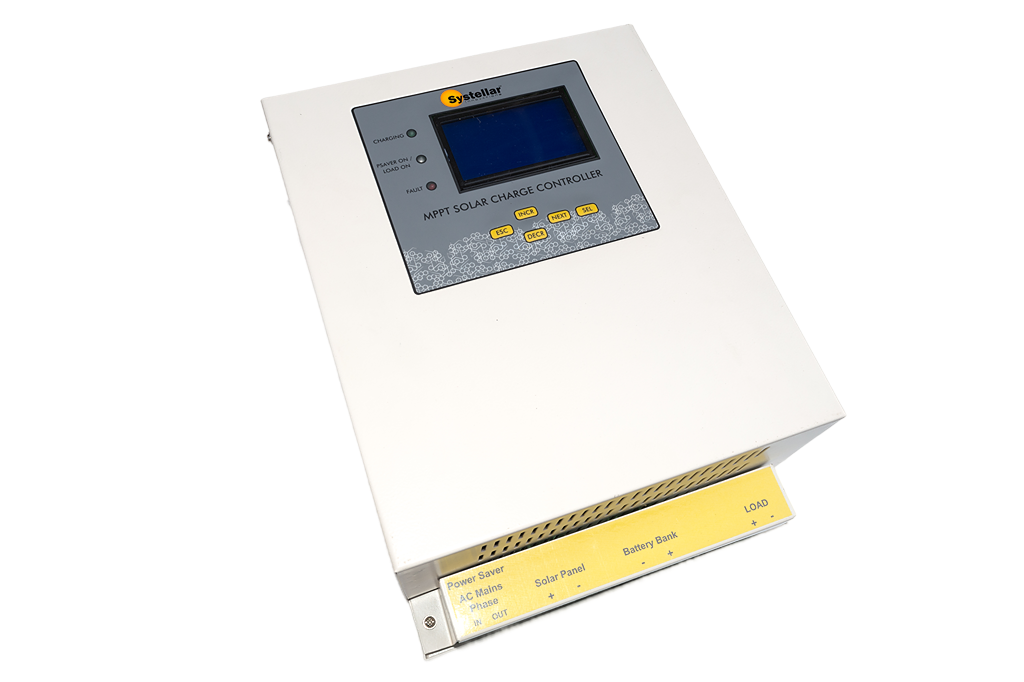

MPPT-Gen6- 12V,24V,36V,48V 50A & 75A MPPT Solar Charge Controller | Voc 175V | Systellar
Rs. 9,899.00
Achieve Energy Independence with Advanced MPPT Solar Charge Controller
Take control of your power generation with the Systellar CC-MPPT-Gen6-200. Proudly Made in India, this solar charge controller is engineered for those who demand self-reliance and efficiency. By utilizing advanced Triple Interleaved Synchronous Buck Converter MPPT technology, it ensures your battery bank receives the maximum possible energy harvest from your solar panels, even in challenging electrical environments.
Why This MPPT Charge Controller Delivers Performance:
- Maximum Energy Harvest: Advanced MPPT tracking algorithms achieve up to 98.8% efficiency, ensuring every ray of sunlight contributes to your power supply.
- Universal Battery Support: Fully compatible with Lead-Acid, LiFePO4, Li-ion, and Ni-Cd batteries, offering a versatile solution for any energy storage setup.
- Intelligent 5-Stage Charging: Improves battery longevity through a precise charging cycle including Bulk, Absorption, and Trickle modes.
- Local Engineering, Global Standards: Designed and manufactured in India to withstand local conditions while providing professional-grade technical precision.
Technical Specifications:
- Controller Type: Maximum Power Point Tracking (MPPT) Solar Charge Controller
- System Voltage: 12V / 24V / 36V / 48V (User Selectable)
- Maximum Charging Current: 50A or 75A models available
- Max Solar PV Voc: 175V
- Conversion Efficiency: 97.3% to 98.8%
- Display: 128x64 pixel backlit graphic LCD with 5-key interface
- Charging Stages: 5-Stage charging (Deep discharge, Bulk, Absorption, Trickle, and Equalizing)
- Protections: PV and Battery Reverse polarity, Battery overcharge, deep discharge, and short-circuit protections
- Housing: Indoor IP21 vertical wall mount
How to Use:
Install vertically on a wall in a well-ventilated indoor area. Use the integrated 5-key keyboard and backlit display to select your specific battery chemistry and set charging parameters. For lead-acid systems, an optional temperature sensor can be added to optimize charging thresholds based on environmental conditions.
At Systellar Innovations, we are committed to an Atmanirbhar Bharat. Our solar solutions are engineered for durability and sustainability, helping you reduce energy costs while securing a self-reliant energy future.

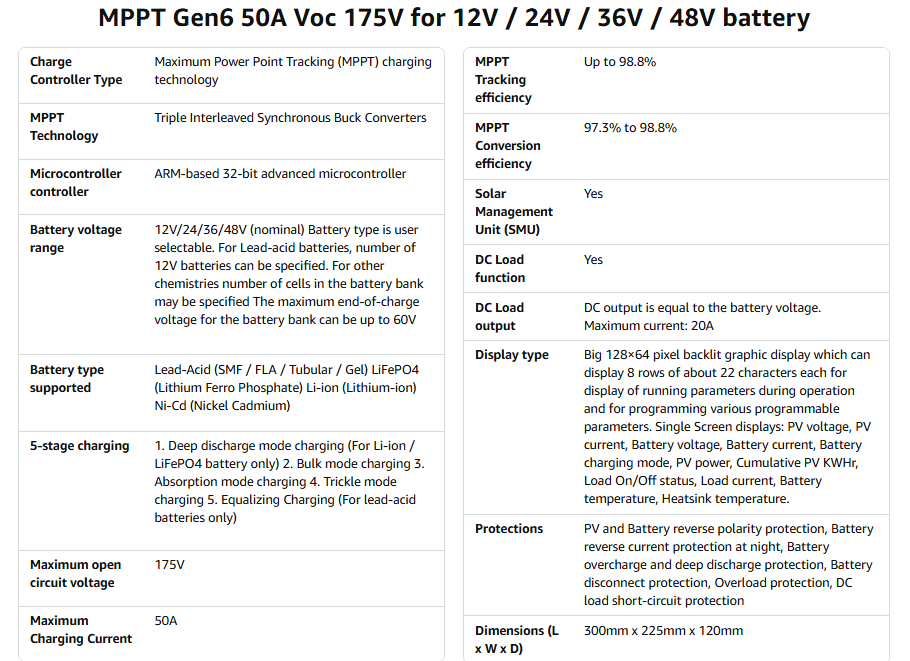

| Technical Specifications | |
| Charge Controller Type | Maximum Power Point Tracking (MPPT) charging technology |
| MPPT Technology | Triple Interleaved Synchronous Buck Converters |
| Microcontroller controller | ARM-based 32-bit advanced microcontroller |
| Battery voltage range | 12V/24/36/48V (nominal) Battery type is user selectable. For Lead-acid batteries, number of 12V batteries can be specified. For other chemistries number of cells in the battery bank may be specified The maximum end-of-charge voltage for the battery bank can be up to 60V |
| Battery type supported (user selectable) | Lead-Acid (SMF / FLA / Tubular / Gel) |
| LiFePO4 (Lithium Ferro Phosphate) | |
| Li-ion (Lithium-ion) | |
| Ni-Cd (Nickel Cadmium) | |
| 5-stage charging for maximum battery care: | 1. Deep discharge mode charging (For Li-ion / LiFePO4 battery only) |
| 2. Bulk mode charging | |
| 3. Absorption mode charging | |
| 4. Trickle mode charging | |
| 5. Equalizing Charging (For lead-acid batteries only) | |
| Maximum open circuit solar panel voltage (Voc) | 175V for 200 model |
| Maximum Charging Current | 50A or 75A |
| Maximum open circuit solar panel voltage (Voc) | 175V |
| Maximum allowed solar panel capacity | Maximum allowed solar panel capacity |
| 12V-50Amp - 750 Wp | |
| 24V-50Amp - 1600 Wp | |
| 36V-50Amp - 2300 Wp | |
| 48V-50Amp - 3400 Wp | |
| 12V-75Amp - 1125 Wp | |
| 24V-75Amp - 2300 Wp | |
| 36V-75Amp - 3400 Wp | |
| 48V-75Amp - 5000 Wp | |
| MPPT Tracking efficiency | Up to 98.8% |
| MPPT Conversion efficiency | 97.3% to 98.8% |
| Solar Management Unit (SMU) functionality | Yes |
| DC Load function | Yes |
| DC Load output | DC output is equal to the battery voltage. Maximum current: 20A |
| Display type | Big 128×64 pixel backlit graphic display which can display 8 rows of about 22 characters each for display of running parameters during operation and for programming various programmable parameters |
| Display Parameters | Single Screen displays: PV voltage, PV current, Battery voltage, Battery current, Battery charging mode, PV power, Cumulative PV KWHr, Load On/Off status, Load current, Battery temperature, Heatsink temperature |
| Keyboard | 5 Keys (INCR, DECR, NEXT, ESC & SEL) keyboard is provided on the front panel to view / program various parameters |
| LED indicators | Green – for indicating the following conditions: |
| Low charging (< 5A): Single 100ms Blink after every 2sec | |
| High charging (> 5A): Double 100ms Blink after every 2sec | |
| Battery fully charged: Solid ON | |
| Red – The following faults are displayed: | |
| Battery discharged (Then load is disconnected): Single 100ms Blink after every 2sec | |
| Overload (Then load is disconnected): Two 100ms Blink after every 2sec | |
| Battery voltage too high: Three 100ms Blink after every 2sec | |
| PV input too high (Then charging is stopped): Four 100ms blink after every 2sec | |
| User-programmable charging parameters | Using the above LCD display & keyboard, the following charging and other operational parameters can be programmed by the user. |
| Battery end of charge voltage | |
| Battery trickle charge voltage | |
| Battery re-bulks voltage | |
| Battery Low cut enters voltage | |
| Battery Equalize charge voltage | |
| Equalizing charge interval (Only for LA battery) | |
| Temp Coefficient for selected Battery type: | |
| Maximum charging current: | |
| Users can modify the maximum charge current (Mainly to protect small capacity batteries). | |
| a. For the 50Amp Model, It can be set in between 5 to 50 Amps. | |
| b. For the 75Amp Model, it can be set in between 5 to 75 Amps. | |
| DC Load Control: | |
| Users can turn on/off load as per their requirements | |
| Load Control Code Function | |
| 0 Load always on | |
| 1 Load on dusk to dawn | |
| 2 – 14 Load on for so many hours after dusk | |
| Protections | PV and Battery reverse polarity protection, Battery reverse current protection at night, Battery overcharge and deep discharge protection, Battery disconnect protection, Overload protection, DC load short-circuit protection |
| Temperature compensation of charging thresholds | With optional battery temperature sensor (For lead-acid batteries only) |
| Heat sink temperature sense | Built-in heat sink temperature sensor stops charging in case of overheating of the heat sink |
| Idle current from the battery | Max: 60 mA |
| Optional accessories: | 1. Battery temperature sensor with 2 M cable |
| 2. RS-485 adapter card for transferring data over MODBUS (RTU protocol). (Requires special MODBUS firmware). | |
| Usage | Indoor IP21 housing |
| Operating Temperature Range | 0°C to 45°C |
| Unit Weight | 4.5 Kg |
| Dimensions (L x W x D) | 300mm x 225mm x 120mm |
| Mounting | Vertical wall mount |
| Manufacturing Warranty | Two year |
